Material number 628030000AS45

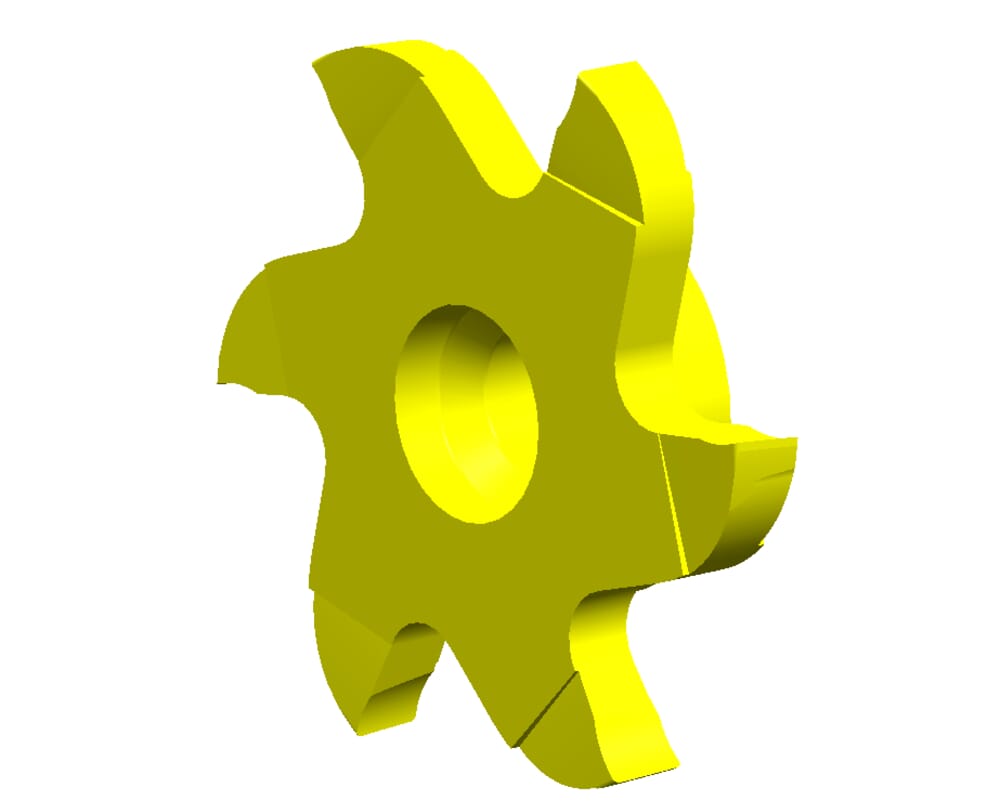

HORN Insert 628.0300.00 AS45 for Milling

Cutting data and technical instructions

Corner radius (r)

0.008 ˝

0.2 mm

tool-application

rotating

Cutting insert thickness, setting length complete (s)

0.24 ˝

6.1 mm

Maximum milling depth/ depth of groove (tmax)

0.256 ˝

6.5 mm

Width of groove (mm) (w)

0.118 ˝

3 mm

Cutting diameter (Ds)

1.091 ˝

27.7 mm

Katalog_SSC

328114R

Downloads
628_0300_00_AS45-ISO.XML	Download
628_0300_00_AS45-DXF.DXF	Download
628_0300_00_AS45-STP.STP	Download
628_0300_00_AS45-DIN.XML	Download
Download all files
