628.0150.00 AS45
Material number 628015000AS45
HORN Insert 628.0150.00 AS45 for Milling

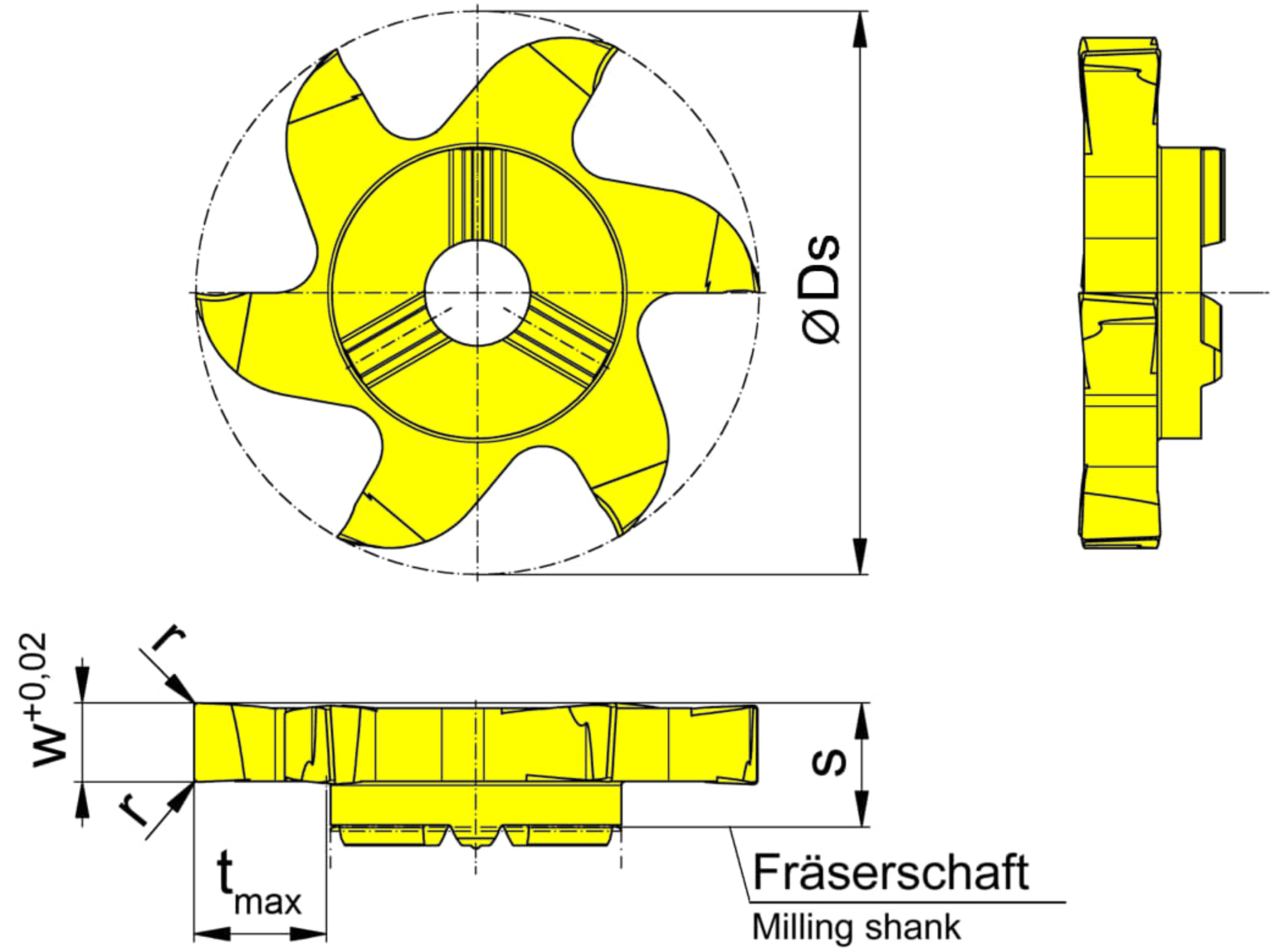

Cutting diameter (Ds)
1.091 ˝
27.7 mm
Katalog_SSC
328143R
Width of groove (w)
0.059 ˝
1.5 mm
Maximum milling depth/ depth of groove (tmax)
0.256 ˝
6.5 mm
Cutting insert thickness, setting length complete (s)
0.24 ˝
6.1 mm
tool-application
rotating
| Downloads | |
|---|---|
| 628_0150_00_AS45-DIN.XML | Download |
| 628_0150_00_AS45-DXF.DXF | Download |
| 628_0150_00_AS45-STP.STP | Download |
| 628_0150_00_AS45-ISO.XML | Download |
| Download all files | |
