613.0250.00 TI25
Inserts
Material number 613025000TI25

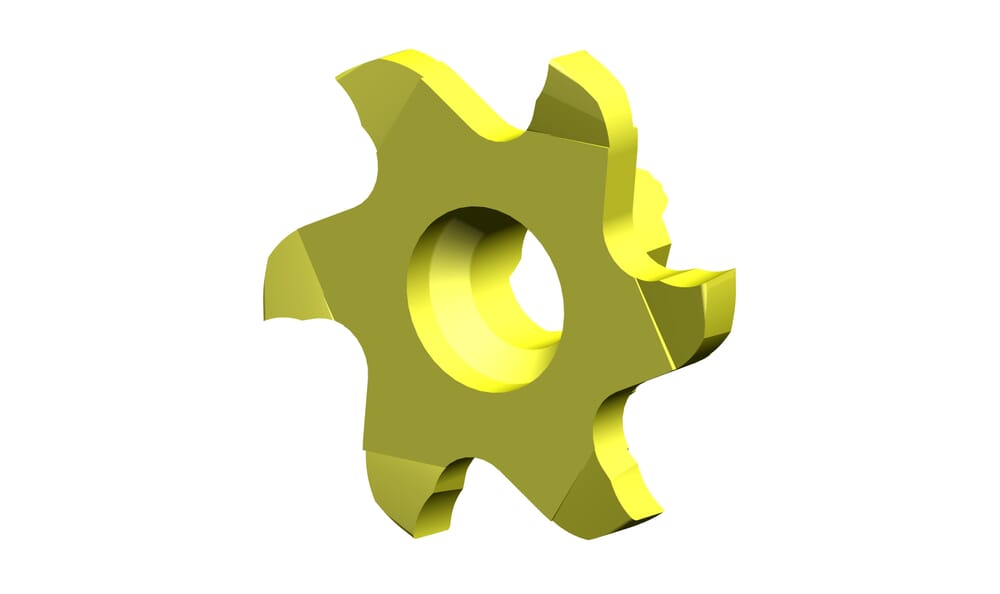

HORN Inserts 613.0250.00 TI25 for Milling
DIN_SSC
HORN31311384R
Cutting insert thickness, setting length complete (s)
0.224
˝
5.7
mm
Maximum milling depth/ depth of groove (tmax)
0.177
˝
4.5
mm
Width of groove (w)
0.098
˝
2.5
mm
Corner radius (r)
0.008
˝
0.2
mm
Katalog_SSC
313113R
ISO_SSC
HORN313113$84R$$$$$
Cutting diameter (Ds)
0.854
˝
21.7
mm
| Downloads | |
|---|---|
| 613025000_20230112_143836346.STP | Download |
| 613025000_20210625_160133127.DXF | Download |
| Download all files | |
