311.0160.40 TI25

VOLLRADIUS_NUT.EPS

TRENNFRAESEN.EPS

ZAEHNEZAHL_Z3.EPS

GEOMETRIE_40.EPS

Material number 311016040TI25

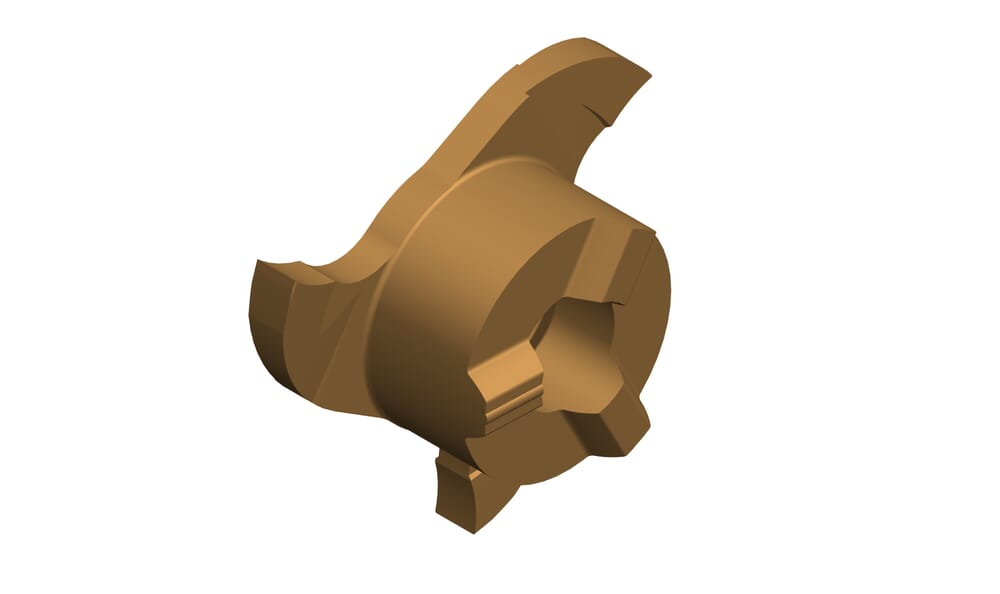

HORN Inserts 311.0160.40 TI25 for Milling

Cutting data and technical instructions

Width of groove (mm) (w)

0.067 ˝

1.71 mm

tool-application

rotating

Cutting insert thickness, setting length complete (s)

0.226 ˝

5.75 mm

Nominal range (Nw)

0.063 ˝

1.6 mm

Maximum milling depth/ depth of groove (tmax)

0.138 ˝

3.5 mm

Cutting diameter (Ds)

0.697 ˝

17.7 mm

Katalog_SSC

311090R

Downloads
311_0160_40_TI25-ISO.XML	Download
311_0160_40_TI25-DIN.XML	Download
311_0160_40_TI25-DXF.DXF	Download
311_0160_40_TI25-STP.STP	Download
Download all files
