308.0130.00 AS45

VOLLRADIUS_NUT.EPS

TRENNFRAESEN.EPS

ZAEHNEZAHL_Z3.EPS

Material number 308013000AS45

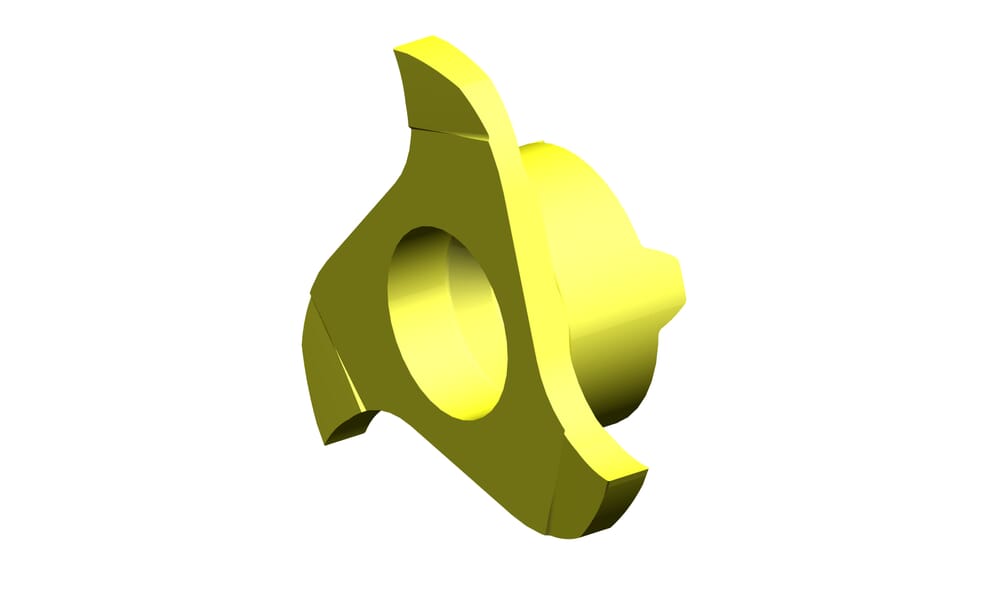

HORN Insert 308.0130.00 AS45 for Milling

Cutting data and technical instructions

Width of groove (mm) (w)

0.056 ˝

1.41 mm

tool-application

rotating

Cutting insert thickness, setting length complete (s)

0.177 ˝

4.5 mm

Nominal range (Nw)

0.051 ˝

1.3 mm

Maximum milling depth/ depth of groove (tmax)

0.138 ˝

3.5 mm

Cutting diameter (Ds)

0.618 ˝

15.7 mm

Katalog_SSC

308080R

Downloads
308_0130_00_AS45-DXF.DXF	Download
308_0130_00_AS45-ISO.XML	Download
308_0130_00_AS45-STP.STP	Download
308_0130_00_AS45-DIN.XML	Download
Download all files
