308.0110.40 TI25
Material number 308011040TI25

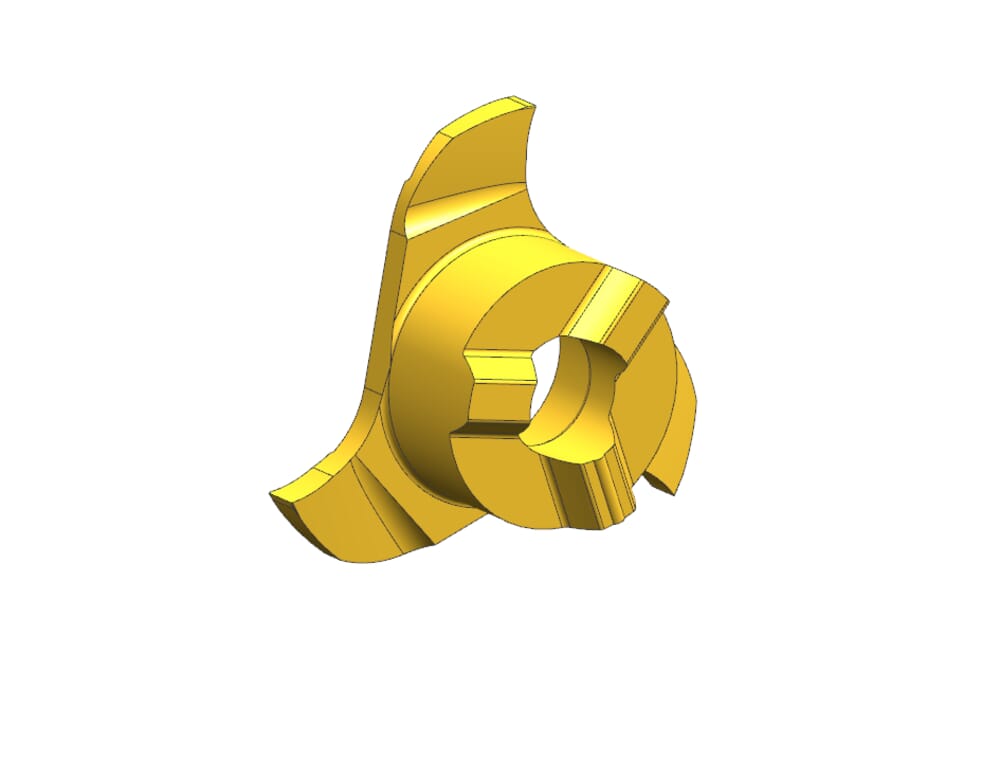

HORN Insert 308.0110.40 TI25 for Milling
Width of groove (mm) (w)
0.048 ˝
1.21 mm
tool-application
rotating
Cutting insert thickness, setting length complete (s)
0.177 ˝
4.5 mm
Nominal range (Nw)
0.043 ˝
1.1 mm
Maximum milling depth/ depth of groove (tmax)
0.138 ˝
3.5 mm
Cutting diameter (Ds)
0.618 ˝
15.7 mm
Katalog_SSC
308080R
| Downloads | |
|---|---|
| 308_0110_40_TI25-ISO.XML | Download |
| 308_0110_40_TI25-DIN.XML | Download |
| 308_0110_40_TI25-DXF.DXF | Download |
| 308_0110_40_TI25-STP.STP | Download |
| Download all files | |
