306.1020.01 AS45
Material number 306102001AS45

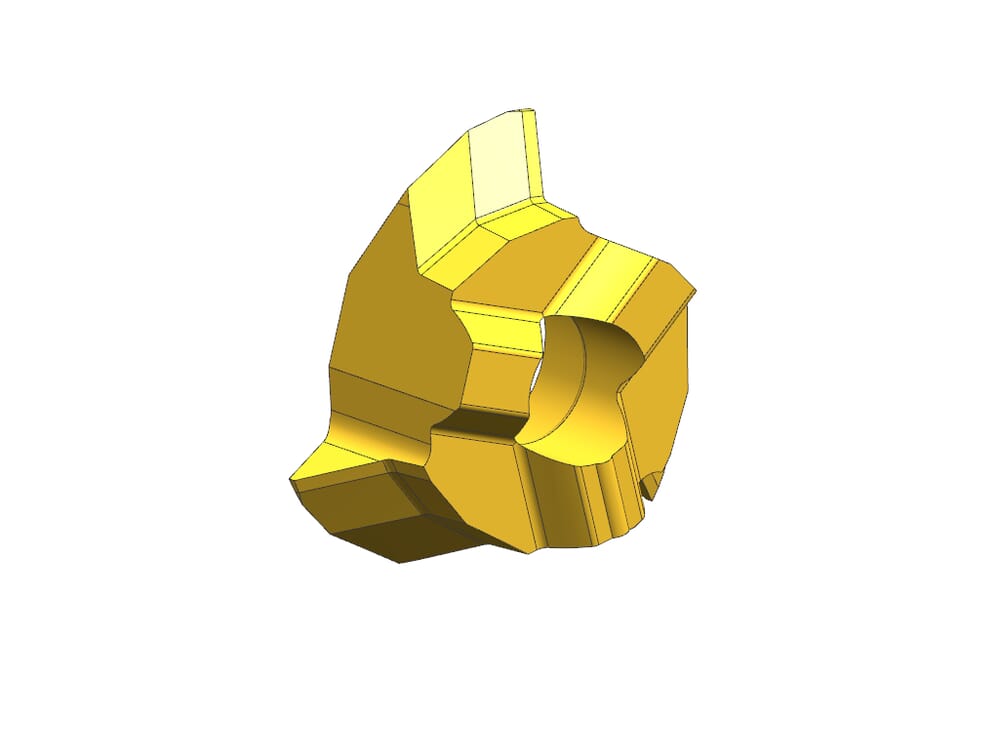

HORN Insert 306.1020.01 AS45 for Gewinden
Setting length (E)
0.087 ˝
2.2 mm
tool-application
rotating
Maximum pitch (Pmax)
0.079 ˝
2 mm
Pitch (P)
0.079 ˝
2 mm
Cutting insert height, Cutting insert thickness (s)
0.134 ˝
3.4 mm
Cutting diameter (Ds)
0.394 ˝
10 mm
Katalog_SSC
306060R
