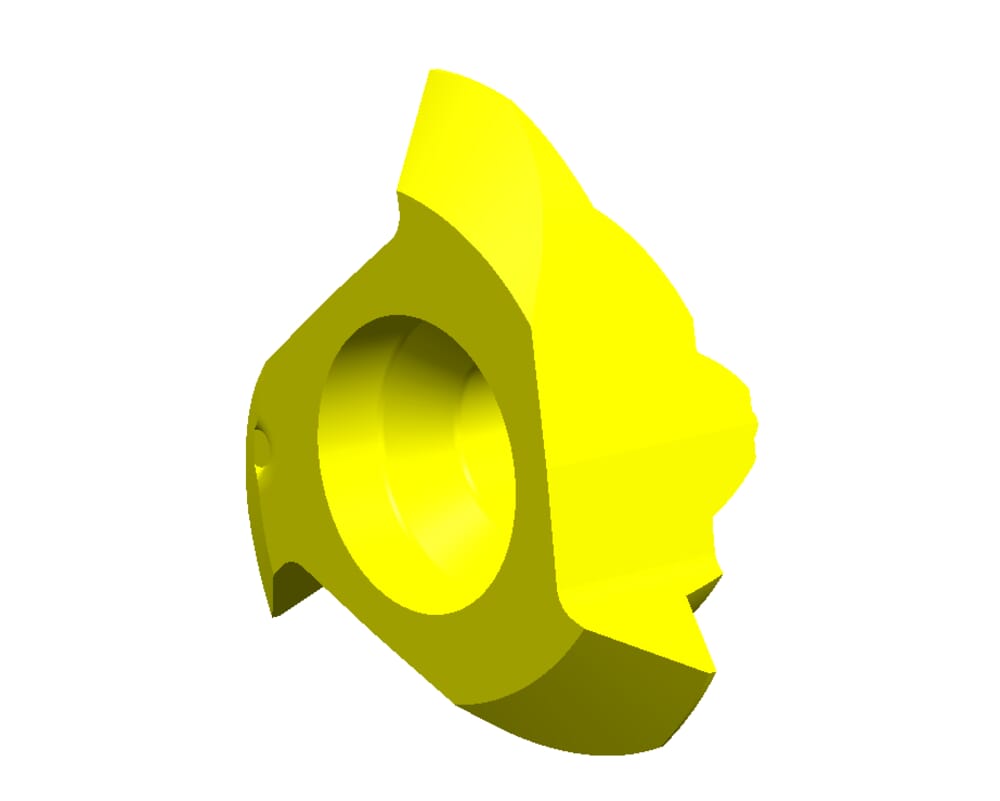

306.0815.01 TN35
Inserts
Material number 306081501TN35
HORN Inserts 306.0815.01 TN35 for Gewinden
Katalog_SSC
306060R
Maximum pitch (Pmax)
0.059
˝
1.5
mm
Pitch (P)
0.059
˝
1.5
mm
Cutting insert height, Cutting insert thickness (s)
0.134
˝
3.4
mm
Setting length (E)
0.089
˝
2.25
mm
DIN_SSC
HORN-30606084R
ISO_SSC
HORN306060$84R$$$$$
Cutting diameter (Ds)
0.461
˝
11.7
mm
| Downloads | |
|---|---|
| 306081501_20230112_141820030.STP | Download |
| 306_0815_01_20180430_143009294.DXF | Download |
| Download all files | |
