MDR.081.C6.125.W
Wälzschälschaft WSR8
Material number MDR081C6125W

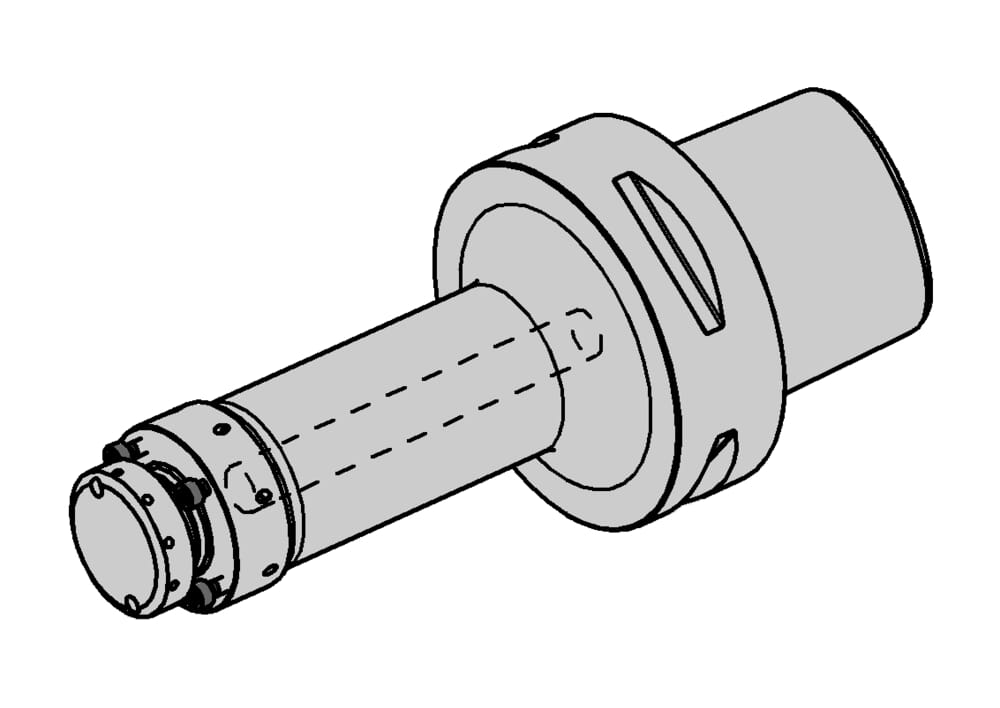

HORN Wälzschälschaft WSR8 MDR.081.C6.125.W for Reaming

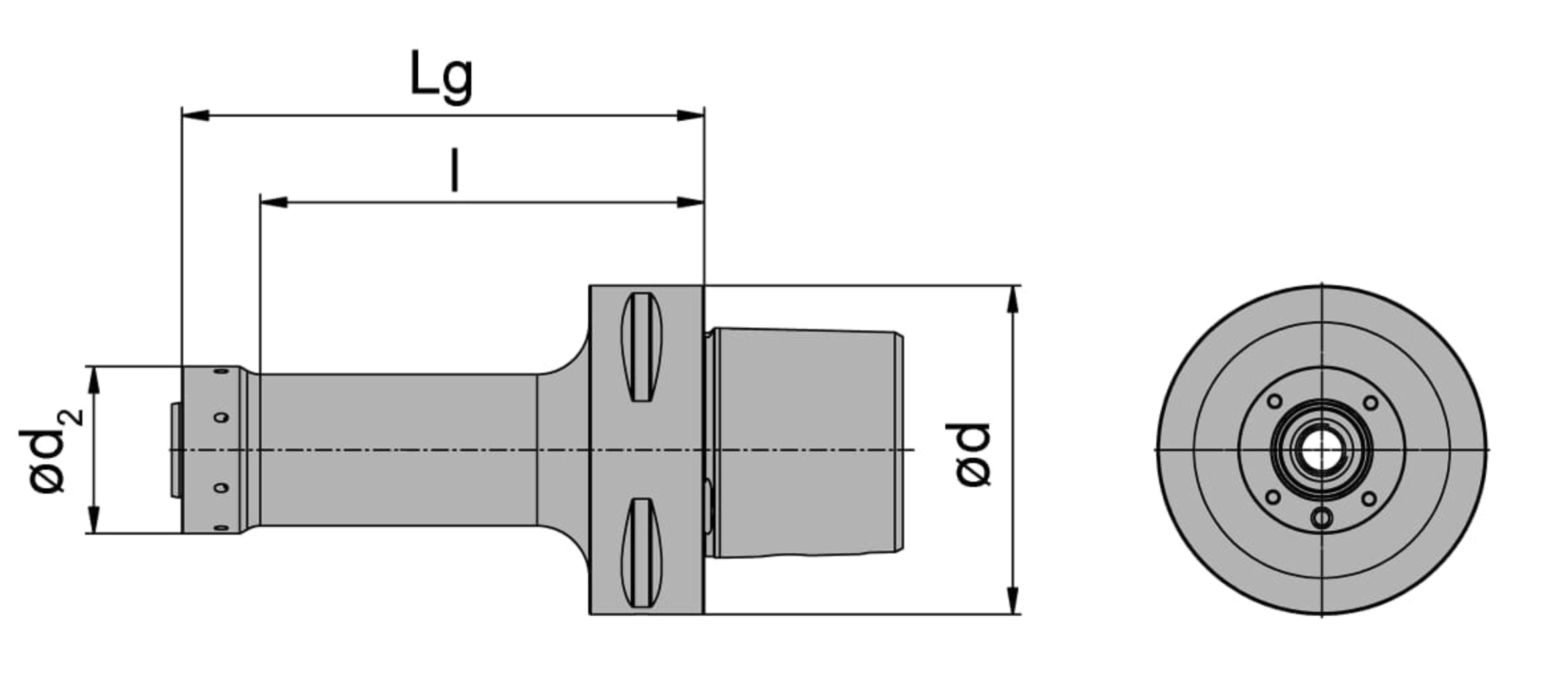

Neck length (l)
4.016 ˝
102 mm
Bore diameter rotate (d)
2.48 ˝
63 mm
Head diameter (d2)
2.205 ˝
56 mm
Working length (Lg)
4.921 ˝
125 mm
tool-application
rotating
| Downloads | |
|---|---|
| MDR081C6125W.DXF | Download |
| Download all files | |
