M610.0063.A27.06
Material number M6100063A2706

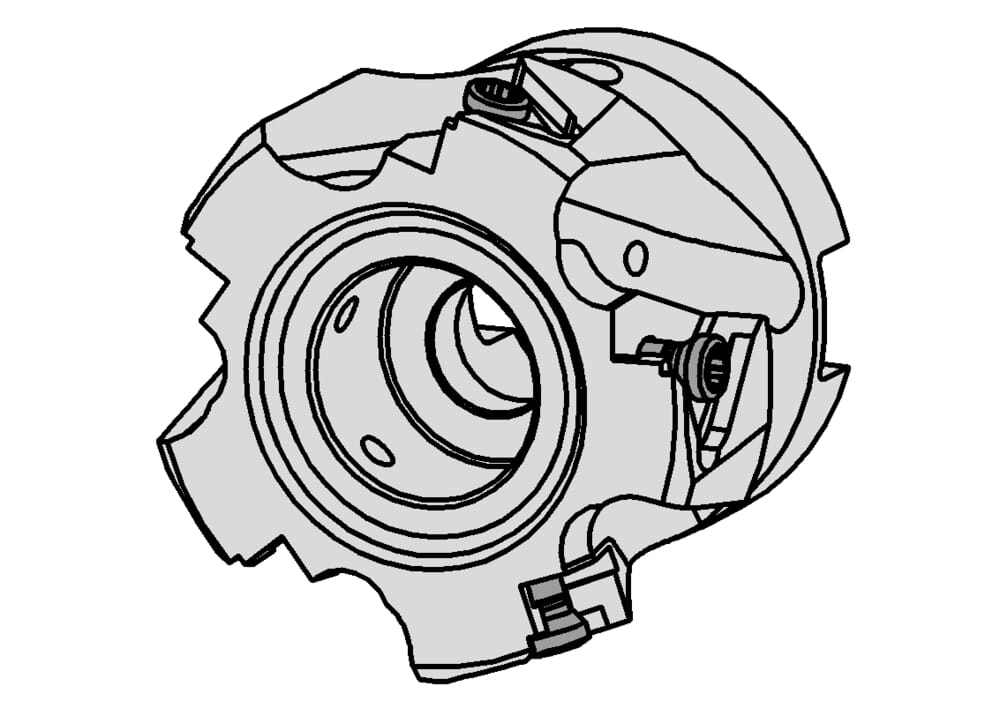

HORN Aufsteckfräser M610.0063.A27.06 for Milling
Maximum stepover (ap) (ap)
0.39 ˝
9.9 mm
Miller length with indexable insert (h)
1.575 ˝
40 mm
Miller length without indexable insert (h2)
1.563 ˝
39.7 mm
Lowering for mounting screw head (d5)
0.906 ˝
23 mm
Mounting hole diameter (d2)
1.063 ˝
27 mm
Length from stop to base fastening screw head (l2)
1.083 ˝
27.5 mm
Width carrier cross groove (b)
0.488 ˝
12.4 mm
Depth carrier cross groove (C)
0.276 ˝
7 mm
Diameter of the mandrel (dK)
1.929 ˝
49 mm
tool-application
rotating
Cutting diameter (Ds)
2.48 ˝
63 mm
Katalog_CCTWS
61000R
Diameter miller body (d1)
2.441 ˝
62 mm
