M406.040.M16.6.06

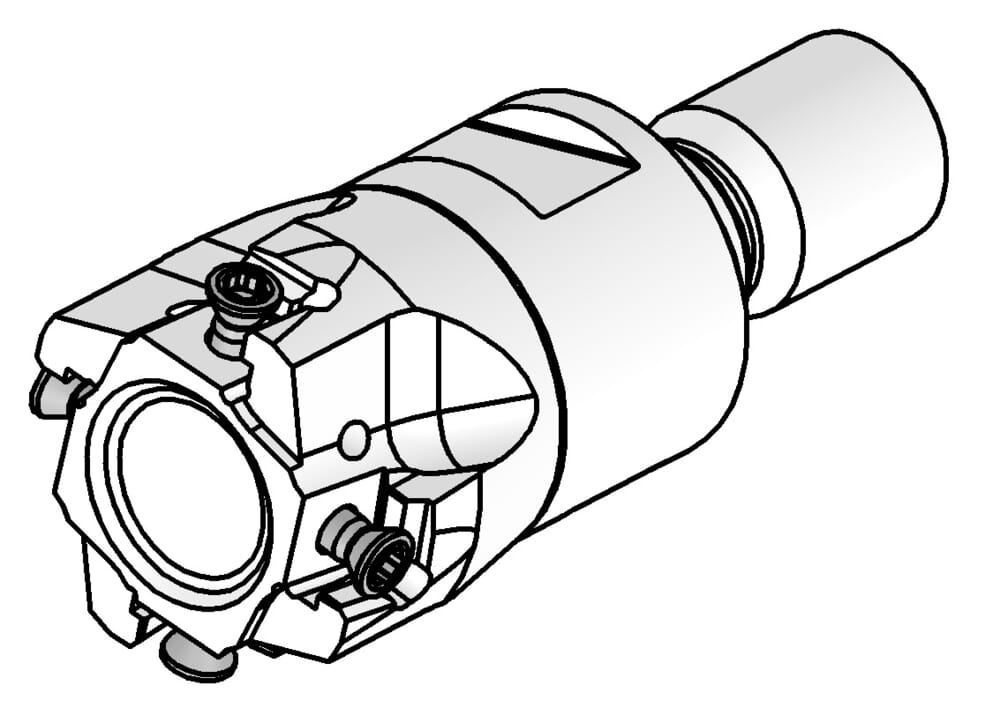

tangential milling cutters type M406
Material number M406040M16606
HORN tangential milling cutters type M406 M406.040.M16.6.06 for Milling

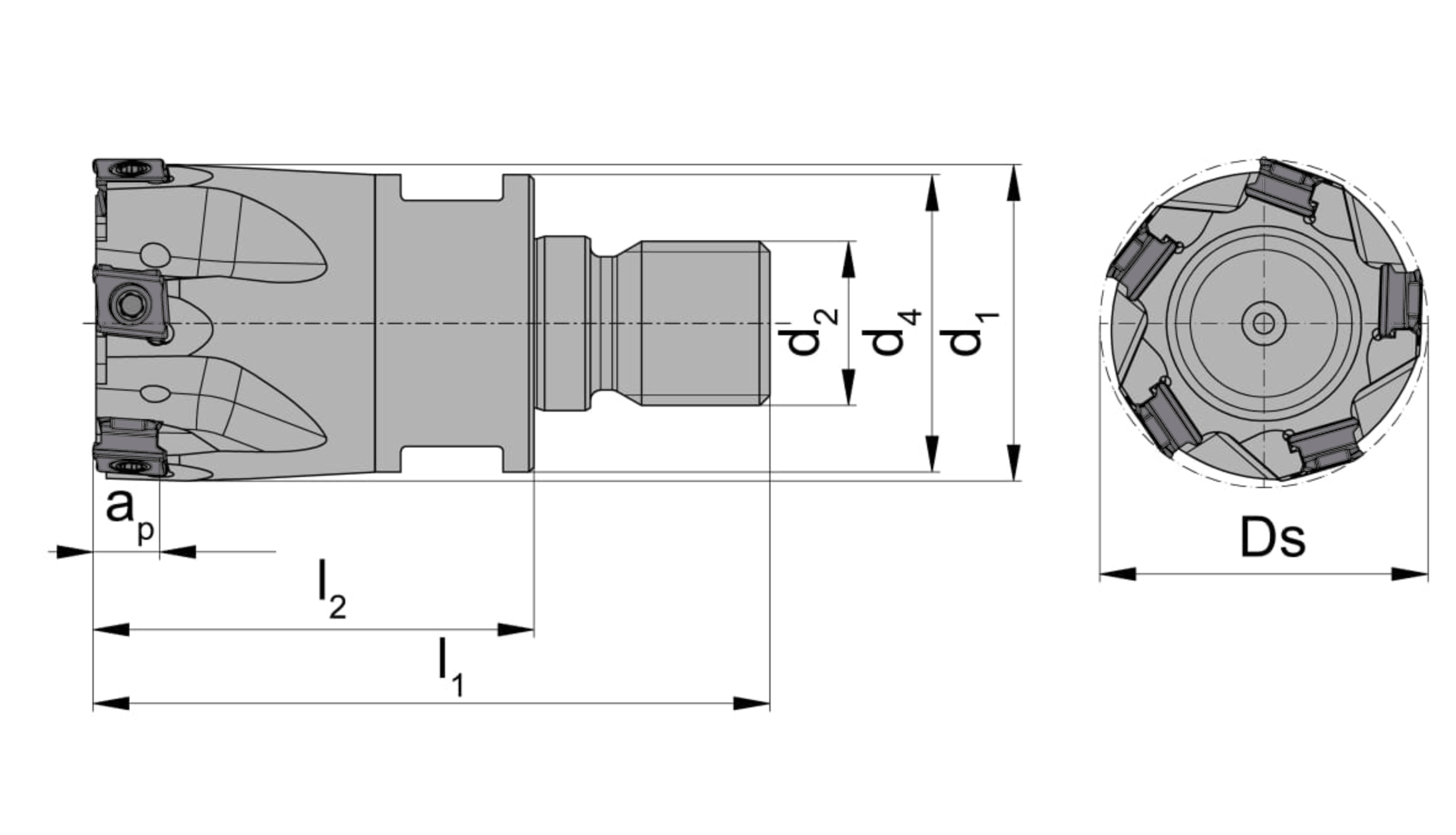

Neck diameter on stop (d4)
1.142 ˝
29 mm
tool-application
rotating
Screw thread (d2)
M16
Maximum stepover (ap) (ap)
0.248 ˝
6.3 mm
Key range (SW)
0.945 ˝
24 mm
Length from stop (l2)
1.693 ˝
43 mm
Total milling length with insert (l1)
2.598 ˝
66 mm
Cutting diameter (Ds)
1.575 ˝
40 mm
Katalog_CCTMS
16001
Katalog_CCTWS
40600R
Diameter miller body (d1)
1.535 ˝
39 mm
| Downloads | |
|---|---|
| M406_040_M16_6_06-DXF.DXF | Download |
| M406_040_M16_6_06-STP.STP | Download |
| M406_040_M16_6_06-ISO.XML | Download |
| M406_040_M16_6_06-DIN.XML | Download |
| Download all files | |
