M332.ST12.2.01B

Toolholder

Material number M332ST12201B

HORN Toolholder M332.ST12.2.01B for Milling

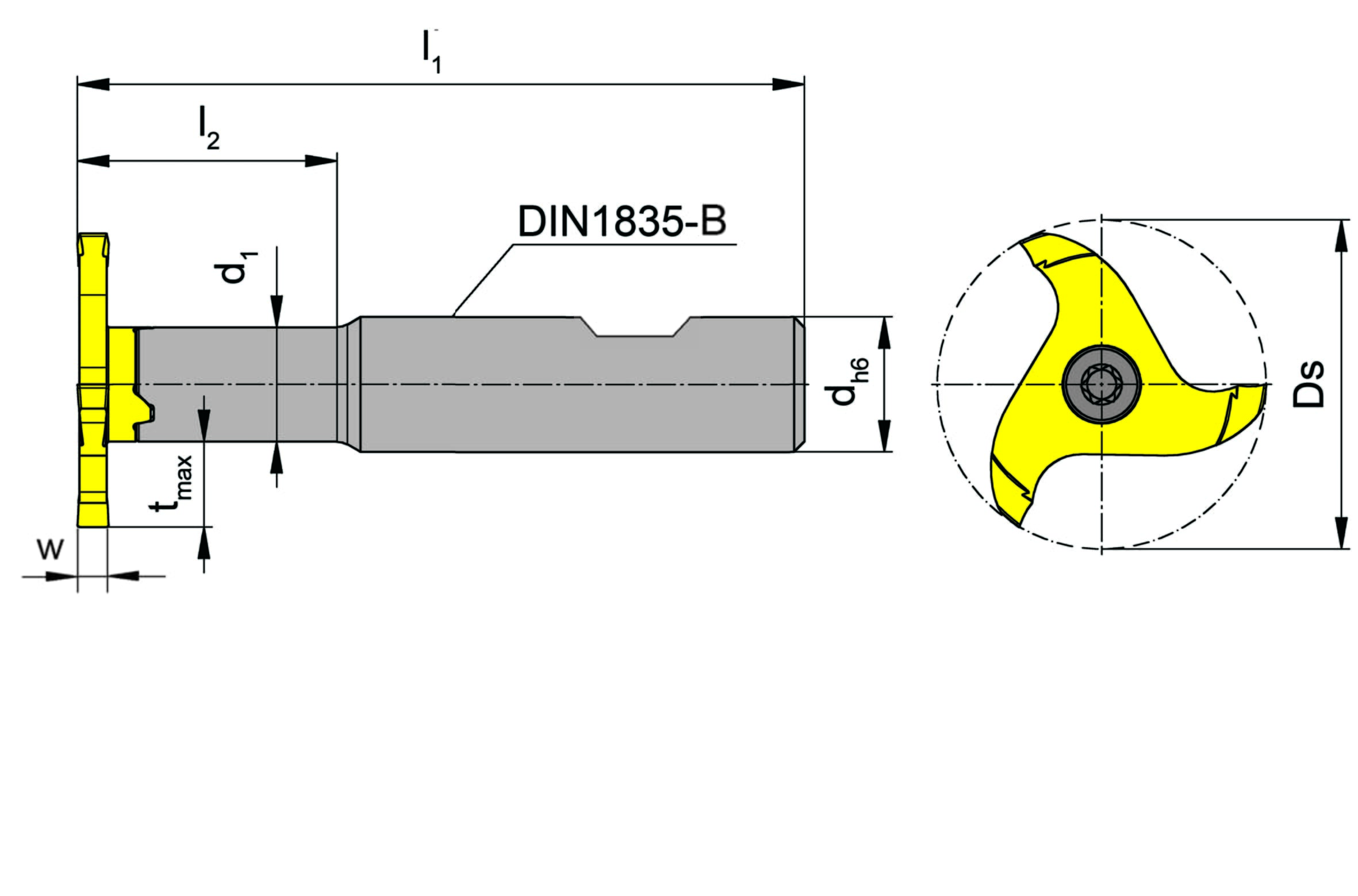

Total length insert (l1)

2.756 ˝

70 mm

tool-application

rotating

Working length, Neck length, Extension length (l2)

0.984 ˝

25 mm

Neck diameter (d1)

0.433 ˝

11 mm

Shank diameter (d)

0.472 ˝

12 mm
