LU116.0031.08 TN35
Material number LU116003108TN35
HORN LU116.0031.08 TN35 for Turning

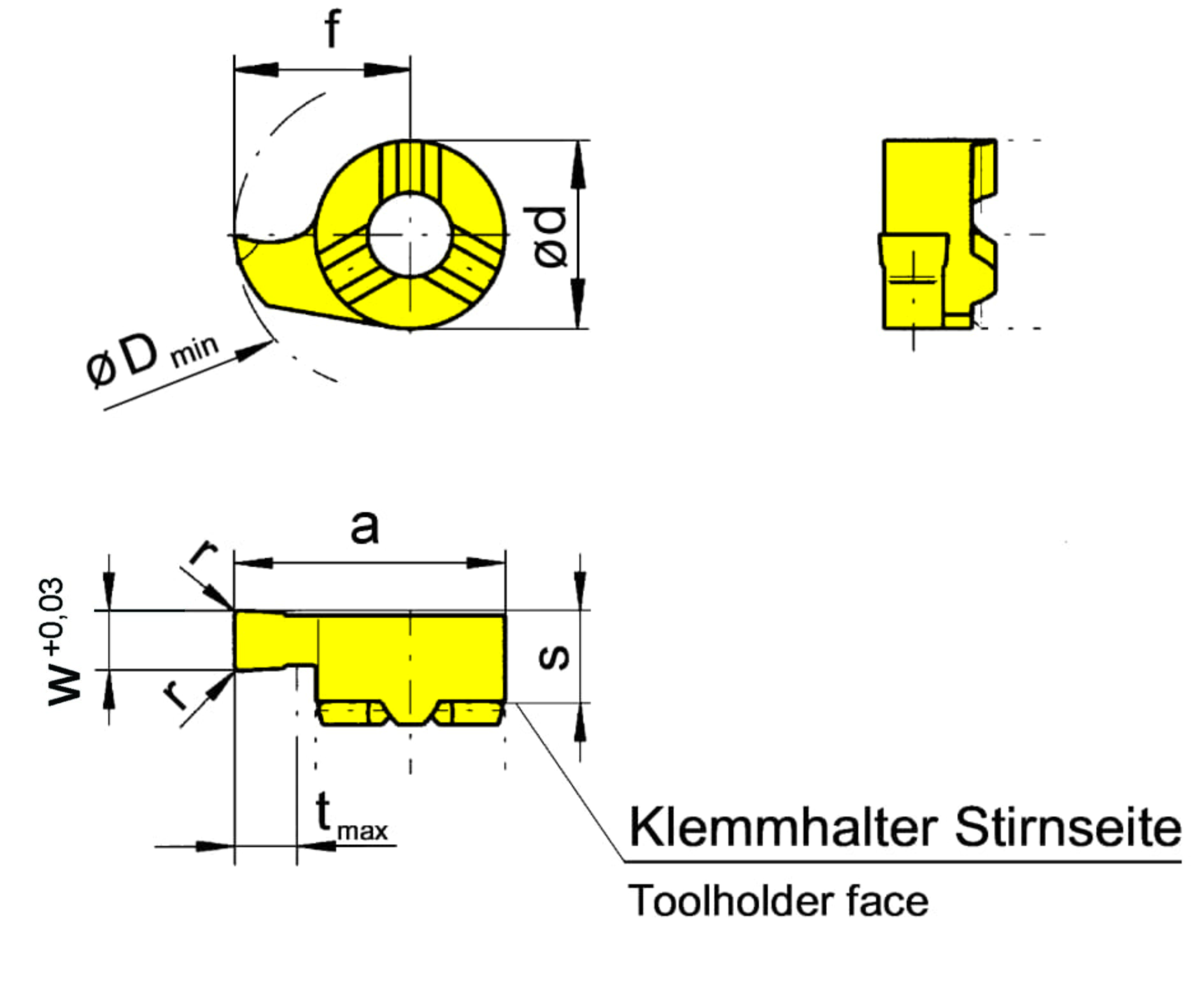

Tooth diameter, head diameter (d)
0.433
˝
11
mm
corner-radius-met
0.008
˝
0.2
mm
cutting-insert-height-met
0.209
˝
5.3
mm
smallest-bore-diameter-met
0.63
˝
16
mm
Width of groove (mm) (w)
0.032
˝
0.805
mm
milling-depth-groove-depth-max-imp
0.169
˝
4.3
mm
cutting-insert-thickness-imp
0.209
˝
5.3
mm
Setting range radial (f)
0.402
˝
10.2
mm
cutting-insert-width-imp
0.618
˝
15.7
mm
tool-application
static
cutting-edge-diameter-met
0.803
˝
20.4
mm
Katalog_SSC
116110L
Maximum depth of groove (tmax)
0.169
˝
4.3
mm
Head size (a)
0.618
˝
15.7
mm
number-of-teeth
1
St.
| Downloads | |
|---|---|
| LU116003108.DXF | Download |
| LU116003108_20230113_112639505.STP | Download |
| Download all files | |
