jetzt LH3152525050A03IK verwenden

Material number L3562525213IK

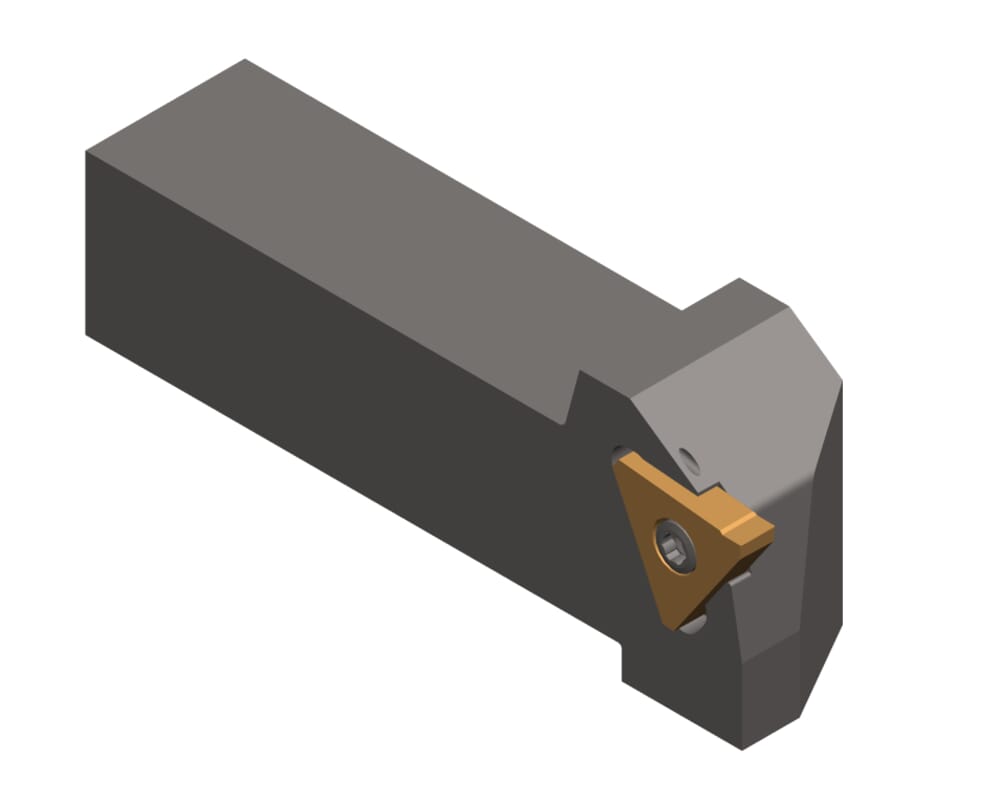

HORN Toolholder jetzt LH3152525050A03IK verwenden for Turning

Adjustment dimension locating face insert (f1)

0.866 ˝

22 mm

tool-application

static

machining-direction-sap

left

Katalog_CCTWS

31503L

Shank width (b)

0.984 ˝

25 mm

Head length top (including cutting edge) (l3)

1.181 ˝

30 mm

Head length (including cutting edge) (l2)

0.827 ˝

21 mm

Peak height (h1)

1.181 ˝

30 mm

length-overall-imp

4.134 ˝

105 mm

Shank height (h)

0.984 ˝

25 mm

Total length (including cutting insert) (l1)

4.134 ˝

105 mm
