DGRR.5.16.1600.00 AN2P
Inserts
Material number DGRR516160000AN2P

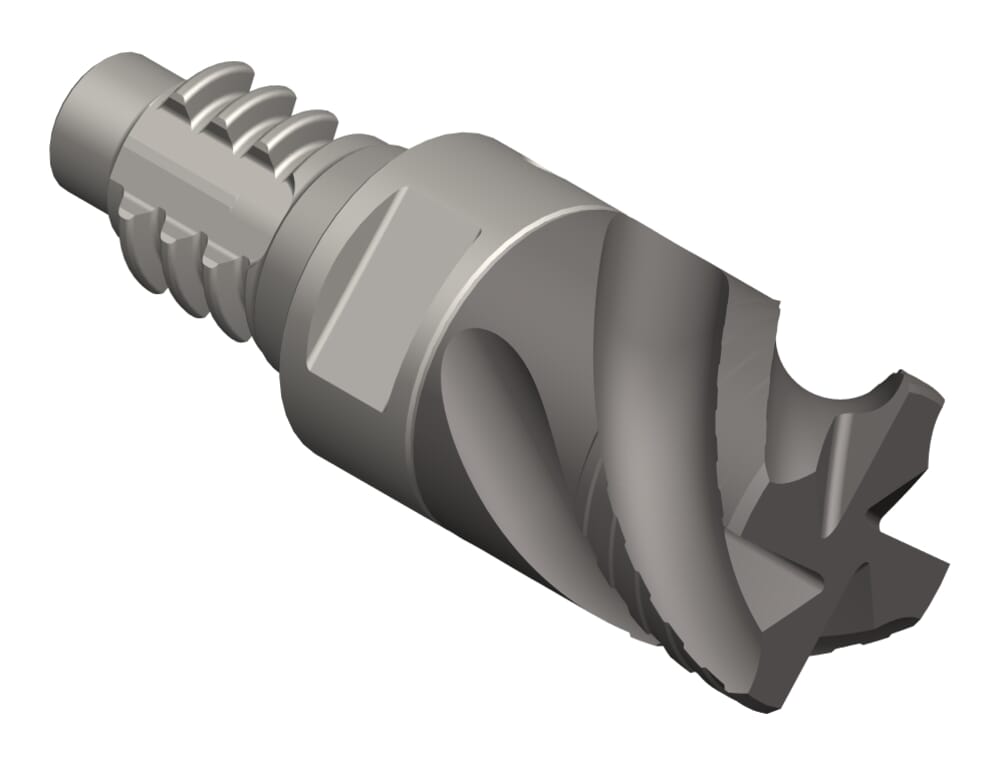

HORN Inserts DGRR.5.16.1600.00 AN2P for Milling
Tool length from stop, flange (l3)
0.976 ˝
24.8 mm
tool-application
rotating
Effective cutting length (l2)
0.335 ˝
8.5 mm
Neck diameter (d3)
0.614 ˝
15.6 mm
Corner bevel (45 ° x b) (b)
0.02 ˝
0.5
Cutting diameter (d1)
0.63 ˝
16 mm
Key range (SW)
13 mm
Katalog_SSC
DG0161
| Downloads | |
|---|---|
| DGRR516160000_20230112_204802313.STP | Download |
| DGRR516160000_20210629_130936039.DXF | Download |
| Download all files | |
