DCG.4.55.71614.7.08 AN25

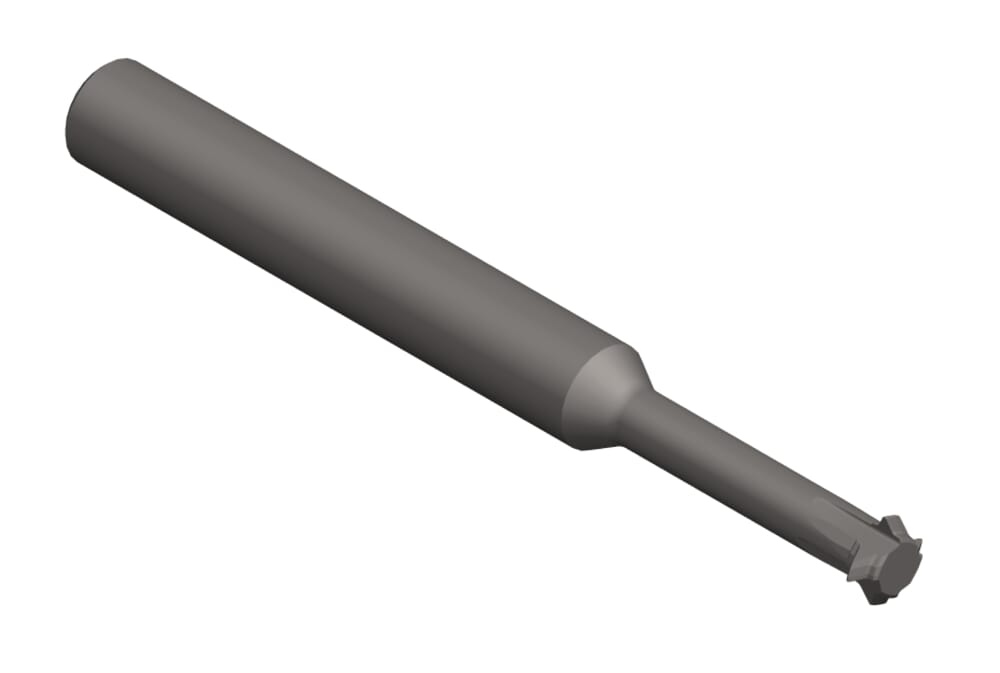

DC threadmill - Whitworth - 7/16"-14 BSW

Material number DCG45571614708AN25

HORN DC threadmill - Whitworth - 7/16"-14 BSW DCG.4.55.71614.7.08 AN25 for Milling

Total length (l1)

3.031 ˝

77 mm

tool-application

rotating

Pitch (P)

0.071 ˝

1.814 mm

Smallest bore diameter (Dmin)

0.343 ˝

8.7 mm

Shank diameter (d2)

0.315 ˝

8 mm

Shank, clamping length (l4)

1.575 ˝

40 mm

Cutting diameter (d1)

0.283 ˝

7.2 mm

Neck length (l3)

0.984 ˝

25 mm
